U-bolts are classified by the shape of the bend, and the bend has to match the component it wraps. Three geometries cover most of what is bought and sold: the round bend for pipe, tube and round bar; the square bend for square tube, flat seat and rectangular sections; and the semi-round bend for axle housings and other profiles that sit between the two. Leg length is a second, separate variable — a long-tangent U-bolt is the same bend with a longer straight leg — and offset, slant and vee bends are the specialist geometries. Cushions, liners and coatings change what the U-bolt does to the surface it contacts, not what shape it is.
In the inch series, ASME B18.31.5, Bent Bolts (Inch Series), treats U-bolts as one part of the bent-bolt family and its own scope distinguishes them by bend, with separate general requirements for offset round bend, vee bend and slant U-bolts. That is the useful way to read any U-bolt call-out: the bend first, the dimensions second.
Match the U-bolt type to the component being secured
A U-bolt holds by making contact along the inside of its bend. If the bend profile does not follow the outside of the component, the bolt touches on a line or a corner instead of over an area, the joint never seats, and tightening the nuts adds local stress rather than clamping force. Selection therefore starts with the shape of the part being clamped.
| U-bolt type | Bend geometry | Component it is made for | Typical use |
|---|---|---|---|
| Round bend | Semicircular inside radius matched to an outside diameter | Pipe, tube, conduit, round bar, hose | Pipe and conduit support, pipe clamps, exhaust and intake tubing, round posts |
| Square bend | Two corners and a flat back; legs parallel and straight | Square or rectangular tube, flat bar, a flat seat or bracket face | Trailer and chassis hardware, spring seats, beam straps, machinery brackets |
| Semi-round bend | Rounded back with a flatter, broader bearing area than a true round bend | Profiles that are not a clean circle: axle tubes with a cast or forged seat, formed housings | Vehicle suspension repair parts and replacement U-bolts matched to a specific housing |
| Long tangent (deep leg) | Standard bend with a long straight portion before the threaded end | Any of the above, where the support is thick or recessed | Deep supports, thick spring packs, assemblies where the nuts sit well below the bend |
| Offset / slant bend | Legs not on a common centre line, or a bend set off centre so the legs meet different faces | Components where the mounting holes are not symmetric about the clamped part | Special brackets, conversions, equipment where the support is offset from the component |
| Vee bend | Bend formed to a V rather than a curve | Angular or vee-profiled seats | Specific seat geometries; covered by its own general requirements in ASME B18.31.5 |
One naming point causes more confusion than any other: in “square bend U-bolt” the word square describes the shape of the bend, not the cross-section of the bar it is bent from. U-bolt bodies are normally bent from round bar, and most pipe U-bolts carry a bar diameter that is smaller than the thread rolled onto the legs.
What the standards cover, and what they do not
No single standard lists every U-bolt a distributor stocks, and the designations differ by market. ASME B18.31.5-2011 (R2021) establishes general requirements for parts classified as bent bolts and provides dimensional tables for U-bolts of differing bends, alongside a Part Identification Number system for ordering configurations that are tabulated. Its own description notes that the dimensional data reflects generally available configurations and does not imply that every product described is a stock production size — so a drawing that carries a part number from the standard still has to be checked against what is actually made.
On the pipe side, DIN 3570 is the German standard for a round-bar U-bolt for pipes, covering nominal widths from 20 to 500. It is a decades-old designation that remains in force and is still the everyday call-out for pipe clamps in metric markets. Pipe U-bolts in the US market are commonly selected from hanger-and-support standards instead: MSS SP-58 is the pipe hanger and support standard that carries its own component type designations, including for the classic pipe U-bolt, and it is a different document from a different organisation with its own measurement system.
National frameworks add their own route. GB/T 17116.1-2018, Pipe supports and hangers — Part 1: Technical specification, sets the basic requirements for the material, design, manufacture, installation, testing, inspection and maintenance of pipe support and hanger assemblies for circular-section metal piping, with the connecting components handled in the later parts of the same family. A U-bolt ordered for a project in that market is read against the project specification and that family, not against DIN 3570.
The practical rule: do not assume a U-bolt type is covered by a standard just because the type has a familiar name. Check that the specification actually tabulates that bend and that size before the name goes on an order or a test certificate.
Round-bend U-bolts

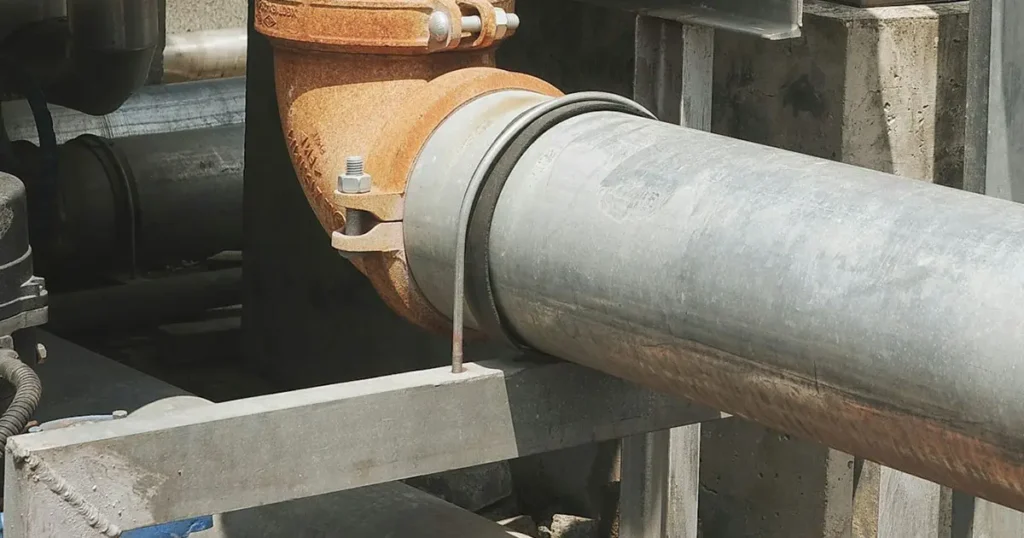

The round bend is a semicircle whose inside radius follows the outside of the pipe or bar it clamps. That continuous contact is the whole point of the form: it spreads the clamp load around the circumference instead of concentrating it, which is why round-bend U-bolts are the standard fixing for pipe, tube, conduit and round bar.
Two consequences follow for anyone sizing one. First, the controlling dimension is the measured outside diameter of the component, not its nominal size — a nominal pipe size label does not determine the outside diameter, and pipe outside diameter series do not agree between metric and inch practice at the same nominal designation. DIN 3570 is built on the same principle: the U-bolt size is the inside width between the legs, and each size is tabulated against the pipe outside diameters it suits. Second, the nominal thread on the legs does not tell you the bar diameter and does not tell you the inside width.
Round bends also come in more than one arrangement even when the bend itself is identical. DIN 3570 defines a form with two equal threaded legs and a second form in which one leg is shortened and left plain, for positions where only one side can be reached with a nut and spanner. The bend is the same; the leg arrangement is what changes, which is why “round bend” alone is never a complete description. Form A covers the full DIN 3570 standard size range, while Form B is available only in smaller sizes, up to nominal width 80 (size A 94). Confirm the specific sizes and availability with the supplier before ordering. Both forms are listed on the ChinaBolts DIN 3570 U-bolts page, where they are supplied to the standard’s dimensions.
Square-bend U-bolts
A square bend is formed with two corners and a flat back, so the bolt presents straight parallel legs and a flat inside face. That face is what seats on a flat bar, a spring seat, a rectangular tube wall or a bracket pad. Square-bend U-bolts are therefore the normal choice wherever the component or its mounting face is flat, and they are the form most often found in vehicle and trailer hardware, chassis and frame work, and machinery brackets.
Because the back is flat rather than curved, two extra dimensions control fit on a square bend and have to be stated on the drawing: the inside height between the flat back and the end of the legs, and the corner radius that the component’s own corners need to clear. A square bend with the correct inside width but the wrong inside height either will not go over the component or will sit so high that the thread does not reach far enough through the support for the nuts and washers.
Long-tangent and deep-leg U-bolts
Long tangent, or extended tangent, is not a different bend. It is the same round or square bend with a longer straight portion before the thread, which puts the threaded section further from the component. The variant exists because standard U-bolts are dimensioned around a support of ordinary thickness: if the support, the spring pack or the mounting plate is deep, a standard-length U-bolt leaves the nuts partway down the leg, or gives them too few full threads to engage.
Read a long-tangent call-out carefully, because suppliers describe it in more than one way. Some state the thread length on each leg, some state the leg length overall, and some state the distance from the inside of the bend to the first full thread. Those are different measurements of the same part. The requirement the joint actually has is that enough thread is left below the support for the nuts, washers and any plate, with the planned number of full threads engaged after tightening.
Semi-round, offset, slant and vee bends
Beyond the three main families, several geometries appear in real orders. They share a characteristic worth noting: they are usually defined by the component or the drawing rather than by a published table.
- Semi-round bend. The back is rounded but broader and flatter than a true semicircle, so it bears on more of the component than a point and less than a full round bend. It turns up in vehicle work, where the shape is dictated by the axle housing or the seat casting rather than by a nominal diameter.
- Offset and slant bends. Here the two legs are not on a common centre line with the bend, or the bend is positioned so that the legs meet faces at different distances. ASME B18.31.5 carries general requirements for the offset round bend and the slant U-bolt for this reason: these are recognised configurations rather than improvised ones, but they are not described by a single simple dimension.
- Vee bend. The bend is formed to a V to seat in an angular profile. It is a distinct bend geometry with its own general requirements in the same standard, and it is not interchangeable with a round or square bend of similar width.
For all of these, a photograph is not a specification. The workable approach is to measure the component the bolt must straddle, measure the support it passes through, and describe the bend form in words on the drawing — or send a sample — rather than relying on a type name that different suppliers use for slightly different shapes.
Cushions, liners and coatings are not separate types
A rubber-lined, cushioned or coated U-bolt is a geometric type with something added to it. The underlying shape is still round, square or semi-round, and it should be classified that way.
- Cushioned and rubber-lined U-bolts add a resilient sleeve between the bend and the component. They are used where the clamped part must not be abraded or crushed — thin-wall tube, coated pipe, cable — and where vibration has to be damped rather than transmitted. The sleeve occupies space inside the bend, so a cushioned U-bolt either needs a larger inside width than the bare equivalent or is only equivalent to the bare part it is listed against if the sleeve thickness was allowed for.
- Plastic or rubber-coated U-bolts coat the whole bolt, including the bend and often part of the legs. The coating protects the component and the bolt, but it also sits between the nut and the support. On a coated bolt, the thread and the nut have to be checked together after coating, because coating thickness can affect how the nut runs on.
- Metallic finishes — zinc plating, hot-dip galvanizing, stainless — change corrosion performance, not shape. They belong with material selection, but they interact with fit in one specific way worth remembering: on a hot-dip galvanized U-bolt the coating is thick enough that the matching nut and the thread fit should be confirmed rather than assumed.
What matters for type selection is that a lining or coating on the inside of the bend is part of the geometry. Its thickness has to be in the inside-width calculation from the start rather than added after the size has been chosen, and the material and finish decisions themselves sit with the ChinaBolts bolts range rather than with the bend form.
Why a round and a square U-bolt of similar size are not interchangeable
Two U-bolts can take the same thread, be bent from the same bar diameter and have their legs the same distance apart, and still not be substitutes. Three differences decide it.
Contact geometry. A square bend placed on a round pipe contacts at two corners. The joint is then held by friction over a very small area, the pipe can be deformed at those two points, and the bolt can shift under load. A round bend placed over a square section rocks on its curve and cannot sit flat on any face. In both directions the bend is wrong for the component, and no amount of tightening corrects it.
Hole spacing and support geometry. The bend form and the leg spacing together decide where the holes in the support must be, and whether the support has a face for the bolt to bear on at all. A square bend is designed to bear on a flat face; a round bend on a curved or shaped seat. Swapping one for the other usually fails at the support before it fails at the component.
Inside height. A square bend is dimensioned by inside width and inside height. A round bend is dimensioned by diameter and leg length. Even where the width coincides, the height that the legs have to span will not, so the threaded length available below the support changes.
The same reasoning applies one level down, between bends of the same family. Two round bends of the same inside width but different inside radius will not both seat on the same pipe, which is why a bend radius that is out of specification is treated as a defect rather than a minor variation in vehicle inspection practice — WorkSafeBC’s guidance on checking U-bolts on log trucks describes making a simple gauge to check the bend radius, because an overbent U-bolt securing a bulkhead to a truck frame puts the driver at risk if the load shifts.
How to work out which type an application needs
Work in this order and the type falls out of the description rather than being guessed from a catalogue name.
- Identify the component and its profile. Circle, square, rectangle, vee or irregular. If the component is a pipe or tube, get the measured outside diameter; if it is a formed or cast housing, get the seat profile rather than the nominal size.
- Choose the bend that follows that profile. Round for circles, square for flats and rectangles, semi-round where the profile is between the two, vee for angular seats.
- Fix the inside width across the dimension the bend straddles, and add the thickness of any cushion, liner or coating.
- Fix the inside height or leg length from the support thickness and the plate the bolt passes through. If the support is deep, this is where a long-tangent form is decided.
- Check the thread against the leg. Thread size, pitch and thread length have to be consistent with the nuts and washers, and long enough to leave the intended number of full threads engaged after tightening.
- Check that the standard covers the part. If the order cites DIN 3570, ASME B18.31.5, a hanger standard or a national pipe support family, confirm that the bend form and the size are actually tabulated there. If they are not, the U-bolt is a drawing item and every dimension has to be on the drawing.
- Check where the load goes. Where the U-bolt clamps an axle, a spring pack or any part whose position has to be maintained, treat the bend radius and the thread as safety-relevant dimensions. 49 CFR 393.207 requires that no axle positioning part be cracked, broken, loose or missing and that axles stay in proper alignment — which is the job a suspension U-bolt is doing, and the reason a mismatched or re-bent U-bolt is not an acceptable substitute for the correct part.
Type selection ends where dimension selection begins. Once the bend form is settled, the sizes, threads and heights are a separate exercise — the DIN 3570 dimensions and size chart covers the metric pipe range size by size. What the assembly as a whole is being asked to do, which decides whether the bolt is holding a part, restraining it or allowing it to move, is covered in the U-bolt applications guide.
For most orders the classification is complete once three things are written down: the bend form in words, the component profile it must follow, and the inside width and leg or height dimensions that go with it. If you have those, together with the support thickness and the thread you need, the matching U-bolt can be confirmed against the form, the size and the material before the order is placed.
