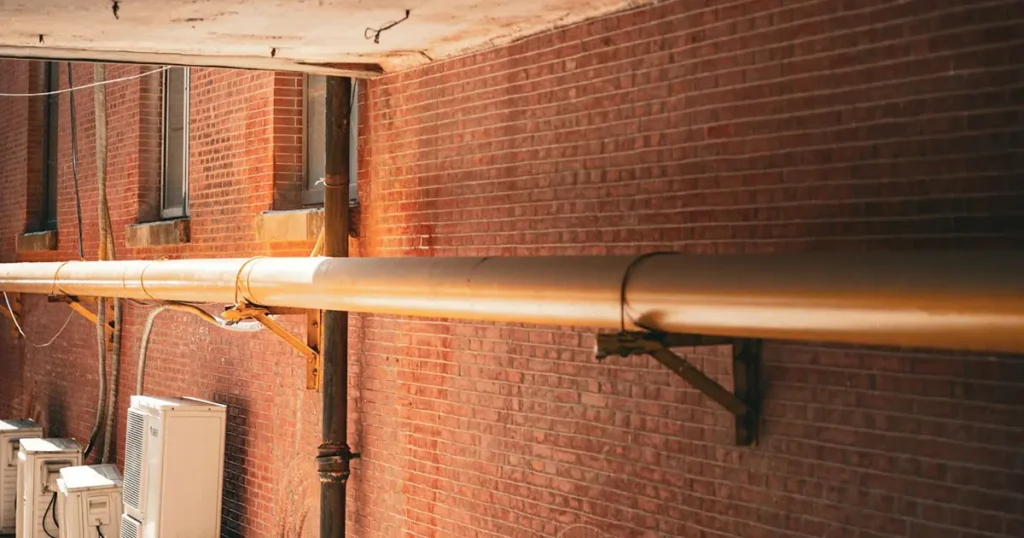

Installing a U-bolt for pipe support is not one procedure. The same U-bolt is installed two different ways depending on what the support is required to do. If the U-bolt is specified as a restraint, it has to hold the pipe against the support structure and prevent movement in the directions the design requires. If it is specified as a guide, it has to hold the pipe in line while leaving a specified clearance so the pipe can still move along its axis.
Everything that follows from that difference — where the nuts go, how hard the assembly is tightened, whether a gap is left, and what is checked afterwards — is decided by the support drawing and the project specification, not by the U-bolt itself. Piping support must carry the weight of the pipe, equipment and contents while accommodating movement from expansion or contraction as well as vibration, and must keep the pipeline in alignment and in its designed position. A U-bolt that is tightened the same way in both roles fails one of those two jobs.
Restraint or guide: decide this before you touch a nut
Both configurations use the same component, and both are set by the support drawing. What changes is the contact condition between the U-bolt and the pipe, and where the nuts end up on the threaded legs.
| Restraint installation | Guide installation | |
|---|---|---|
| What it does | Prevents pipe movement in the directions the design controls | Limits lateral and vertical movement, permits movement along the pipe axis |
| U-bolt to pipe | Firm contact; specified liner or saddle compressed as specified | Specified clearance maintained; pipe free to slide |
| Nut arrangement | Nuts tightened on the underside of the support so the U-bolt is drawn onto the pipe | One nut above and one nut below the support so the assembly is positioned and locked at the design setting |
| Key field check | Contact is firm and even on both legs | The specified gap is present and equal on both legs |
| Main risk if wrong | Pipe not actually restrained; movement and vibration are taken up somewhere the design did not intend | Gap closed by over-tightening; the support holds the pipe instead of guiding it, and movement is resisted where it was meant to be free |
The clearance in a guide is not a tolerance to be judged by feel. How far a line moves comes out of the piping design, and the drawing states the allowance that the support must leave. That is why two U-bolts of the same size on the same rack can require different finished conditions: one tag number may call for firm contact while the next calls for a gap.
Step-by-step installation sequence
1. Check the drawing, the support type and the supplied hardware first. Confirm whether the tag number is a guide, a restraint, or another support type, and read the specified pipe-to-U-bolt condition, nut arrangement, liner or saddle requirement, and tightening note. Then confirm the kit matches: U-bolt diameter and thread, leg length, material and finish, nut quantity and grade, and whether washers, plates, saddles, wear pads or isolation liners are part of the assembly. Missing or substituted hardware is one of the few problems that cannot be corrected later by adjusting the nuts.
2. Confirm the U-bolt fits the pipe as supplied. The U-bolt’s inside width must clear the pipe outside diameter — including insulation, coating, a shoe, or a liner where the drawing calls for one. A U-bolt that has to be forced over the pipe, or that bottoms out on the pipe before the nuts reach the structure, is the wrong size or the wrong leg length, and neither condition can be tightened away. On larger sizes, the required U-bolt may be a rolled or bent product ordered to a specific inside width and leg length rather than a catalogue stock item.
3. Position the U-bolt around the pipe and align the legs with the mounting holes. Seat the U-bolt squarely around the pipe at the marked support location so that both legs pass through the support holes without being forced sideways. Where the support is a beam with drilled holes, both holes should be at the design spacing so that the U-bolt sits vertical and the load is shared equally. If a leg has to be levered into position, correct the hole spacing or the support position rather than pulling the U-bolt into place — forcing the legs loads the threads and tilts the assembly.
4. Fit the nuts and any specified plates or liners in the drawing order. Fit whatever the drawing shows — check plates, hold-down plates, saddles, wear pads, isolation liners — in the stated sequence, then start the nuts by hand. Hand-start both nuts before using a wrench on either. Cross-threading at this stage is a common cause of a leg that will not take full torque later.
5. Bring the nuts down in the specified arrangement. For a restraint, the nuts are tightened below the support so the U-bolt is drawn down and the pipe is held firmly; for a guide, one nut is set above and one below the support so the assembly can be positioned with the required clearance and then locked. Where the drawings do not define this explicitly, the project specification and the support supplier’s installation instruction for that support type govern.
6. Tighten in two stages. Hand-tighten the nut nearest the structure on each leg first, then the outer nut. Then take up the final tightening on both legs progressively and alternately — small increments on one leg, then the other — so that the U-bolt stays square and both legs carry similar load. Tightening one leg fully before starting the other tilts the U-bolt, pushes the pipe off-centre and leaves one leg doing most of the work. Use a tool to snug the nuts; do not add leverage beyond what the assembly and its instructions call for.
7. Verify the finished condition against the drawing. Re-check the pipe-to-U-bolt condition (firm and even contact for a restraint; the specified clearance for a guide, measured consistently on both legs and at the specified locations), confirm the nut arrangement and the presence of every listed component, and confirm that each nut is fully engaged on the thread. A nut whose top face sits past the end of the threaded leg gives an incomplete grip and loads only the last threads.
What goes wrong when a U-bolt is over-tightened
Over-tightening is not a caution about cosmetics. It changes how the support behaves and what it does to the pipe.
- A guide stops guiding. If the specified clearance is closed, the support no longer allows the movement the design assumed. The pipe is then held at a point that was designed to let it slide, so thermal movement is resisted there instead of being absorbed where it was planned, and the resulting load is transferred into the pipe run, adjacent supports and anchors. The difficulty is that the assembly still looks correct, so the error is normally found by measurement, not by inspection of the hardware.
- Coatings and liners are damaged. Excessive clamping force can crack or displace a galvanized or painted finish and can crush, split or permanently compress a wear pad, saddle or isolation liner. Once a liner is compressed below its design thickness, it no longer does its job, and the bare metal contact it was meant to prevent can begin.
- The pipe itself is deformed. Thin-wall pipe, plastic and other non-metallic pipe, and insulated lines are the most exposed. Deformation reduces the pipe’s section, damages internal or external linings and creates a point where further damage can start. Where the drawing specifies a maximum condition or a liner, that instruction exists to prevent this.
- Threads and the U-bolt are overloaded. Forcing past the assembly’s tightening requirement strips threads, stretches the U-bolt legs, or opens the bend. On a restraint this can later present as a loose support; a loose U-bolt is best investigated rather than simply re-tightened, because by then the contact surfaces and the threads may already be worn or fretted.
Uneven tightening causes a separate set of problems: the U-bolt sits at an angle, one leg carries most of the load, the pipe is pushed off-centre in the support, and in a guide the clearance ends up different on the two sides — which is exactly the condition that turns a guide into a partial restraint on one side.
Double nuts: only where the configuration requires them
A second nut on each leg is a locking arrangement. Used as a jam nut, it holds the assembly’s set position against vibration loosening, which is why it appears in guide configurations where the nuts define a clearance that must not drift, and in installations subject to continuous vibration.
It is not a universal requirement. Where the drawing shows a single nut, or shows a lock nut of a specified type, that is the configuration to install. Adding a second nut changes the height at which the assembly sits on the thread, and on a guide that can move the U-bolt relative to the pipe and alter the clearance the design asked for. Double nutting is a specification decision, not a field improvement.
Tightening requirements come from the assembly, not from a chart
There is no defensible universal torque figure for “a U-bolt”. The required tightening depends on the U-bolt diameter, thread, grade and material; the support detail and what is being clamped; whether a liner, saddle or insulation is between the U-bolt and the pipe; and the condition the support is meant to produce. A generic figure taken from a table is not a substitute for the governing instruction.
That instruction comes from the assembly documentation — the support drawing, the project specification, and the support manufacturer’s installation instructions for that specific product. Where the documentation gives a torque value or a tightening condition, follow it. Where it gives neither, tighten to the condition the drawing describes — firm, even contact for a restraint; a maintained specified clearance for a guide — and refer the question back to the engineer rather than inventing a value.
The same principle applies more widely to threaded fastening systems: the tightening specification follows from the joint design and belongs in the engineering documentation. NASA’s public standard for threaded fastening systems, NASA-STD-5020B, is an authoritative example of that approach — although it governs spaceflight hardware and has no application to pipe supports, so it should not be used as a source of tightening values for them.
Protecting coatings, liners and linings
Support hardware is one of the places where a pipeline’s protective system is most easily interrupted, because the U-bolt is in direct contact with the pipe and often with unpainted structural steel.
- Repair the coating where holes were made. Drilling or punching a support hole breaks the protective coating and exposes bare steel; touching up around the hole prevents the corrosion that starts at the fastener.
- Do not distort the finish with the fastener. Coatings are damaged by crushing and by metal-to-metal movement, not only by impact. Where the drawing specifies a protective or low-friction liner under the U-bolt, the liner is there to protect the pipe and, where the pipe must slide, to reduce friction — it must be fitted as specified and must not be clamped out of shape.
- Watch contact between dissimilar metals. Contact between dissimilar metals at a support can cause electrolytic action, which is why support selection guidance calls for checking the pipe material against the material the hanger or support is made of. Carbon-steel U-bolts on stainless or non-metallic pipe, or on coated pipe, are commonly handled with an isolation liner, a coated U-bolt or a saddle where the specification requires it. Install what the drawing specifies, and do not substitute a different U-bolt material on site.
- Protect insulated lines. Insulation and its weather barrier are easily crushed by a U-bolt bearing directly on them; saddles and shields are used to spread the load for that reason, and the specified hardware should be fitted rather than omitted for speed.
Verifying the installation before it is signed off
A short walkdown of each U-bolt support catches nearly every error described above:
- The support type matches the tag — guide, restraint, or other — and the drawing revision is current.
- The pipe-to-U-bolt condition is as specified: firm, even contact for a restraint; the specified clearance present and consistent on both legs for a guide.
- The nuts are in the arrangement shown, each fully engaged on the thread, and any second or locking nut is the one specified.
- Every listed component — plate, saddle, wear pad, liner, washer — is fitted, and no liner or insulation is crushed or displaced.
- The U-bolt sits square to the support, with both legs carrying load and no side load from a misaligned hole.
- Coating damage at the support holes has been touched up.
- Where a lever, cheater bar or impact tool was used, the assembly has been checked again afterwards for thread damage, distortion and lost clearance.
Specifying and ordering U-bolts for support work
Because the installation condition is set by the support design, the purchase order has to carry the same information, or the field will be trying to correct a dimensional problem with nuts. A support U-bolt callout should state the pipe size and the required inside width, the leg length and thread length, the thread size and pitch, the material and grade, the finish or coating, the number and type of nuts supplied, and any liner, saddle or isolation requirement. Where the project works to a national standard for U-bolts, the callout should name it — for example the DIN 3570 range of round-steel U-bolts used as pipe clamps and brackets — together with any specification requirement that overrides it.
Two dimensional checks prevent most field problems: the U-bolt inside width against the actual pipe or insulated outside diameter, and the leg length against the support thickness plus the specified nuts, plates and clearance. A U-bolt that is correct in diameter but short in the leg cannot be installed to the drawing, and thread engagement problems at the end of a support package are almost always a leg-length or thread-length issue rather than a tightening issue.
Support U-bolts are usually drawn from the same bolts and threaded fasteners range as the rest of a project’s fastener package, which is why the thread callout matters as much as the dimensions. A U-bolt ordered with a thread that does not match the specified nuts will arrive as a workable-looking part that cannot be assembled to the drawing, so the thread size and pitch should be confirmed on the order and checked again when the goods are received.
The installation rule to carry away
Install the U-bolt to the condition the support was designed for: a restraint that holds the pipe firmly and evenly on both legs, or a guide that holds the pipe in line while preserving the specified clearance the line needs in order to move. Confirm both from the drawing, tighten progressively and evenly, and check the finished condition before the support is closed out. Where the tightening requirement is not stated, ask — do not adopt a torque figure or a double-nut arrangement that the design never asked for.
