ASTM A193 B7 vs B7M: What Is the Difference?

ASTM A193 Grade B7 and Grade B7M are two different grades inside the same specification, not two versions of the same bolt. The M in B7M does not mean metric. Both grades are quenched and tempered chromium-molybdenum steel bolting, both are covered by ASTM A193/A193M, and both are used with matching A194 nuts — but B7M is held to a far lower hardness ceiling and to lower minimum strength, it is hardness tested piece by piece, and it is written into specifications for sour service.

The short version:

• Grade B7 — minimum tensile strength up to 125 ksi, maximum hardness 321 HBW (35 HRC), matched with A194 Grade 2H nuts. The general A193 grade for high-temperature and high-pressure bolting.
• Grade B7M — minimum tensile strength 100 ksi, maximum hardness 235 HBW (99 HRB), 100% hardness testing of every piece, matched with A194 Grade 2HM nuts. The hardness-controlled grade for sour (H2S-bearing) service under NACE MR0175 / ISO 15156.

The current edition of the specification at the time of writing is ASTM A193/A193M-26.

ASTM A193 B7 vs B7M at a glance

The M in B7M does not mean metric

This is the most common misreading of the question, and it causes real ordering errors.

ASTM uses M at the end of a standard number to mark the metric version of a standard. A193M is the metric edition of A193, A194M is the metric edition of A194, and A320M is the metric edition of A320. These are printed as dual-unit standards, so an order for metric B7 bolting is written with the inch-standard grade and metric dimensions:

ASTM A193M Grade B7, M24 x 3 x 300 mm

M inside a grade designation is part of the grade itself. Grade B7M is a separate grade listed in A193 alongside B7, with its own mechanical requirements and its own hardness ceiling. It is supplied in inch and in metric dimensions. So a single callout can contain two M letters doing two different jobs:

ASTM A193M Grade B7M, M24 x 3 x 300 mm — metric standard, modified grade, metric thread size.

It also helps to know that the M suffix is not consistent across every bolting grade. A193 Grade B8M is 316 stainless steel, where the M denotes the molybdenum-bearing grade, not a hardness limit. In B7M, in the A194 nut grades 2HM and 7M, and in A320 Grade L7M, the M denotes a grade that has been modified to a controlled, lower hardness for sour service. Read the suffix grade by grade.

Strength: B7 is the higher-strength grade

Both grades require a minimum elongation of 16% to 18% in 4D and a minimum reduction of area of 50%. B7 requires 16% up to 4 in and 18% in the larger sizes; B7M requires 18% throughout.

Three things follow from this table:

• B7 is stronger in the smaller sizes. Up to 2-1/2 in it carries a 125 ksi minimum tensile against 100 ksi for B7M, and a 105 ksi minimum yield against 80 ksi. That gap is the reason a B7M stud is not a drop-in substitute for a B7 stud in a joint designed on B7 strength.
• B7’s own requirements step down with diameter. The 125/115/100 ksi tensile ladder and the 105/95/75 ksi yield ladder apply to 2-1/2 in and under, over 2-1/2 to 4 in, and over 4 to 7 in respectively. A comparison that collapses this into two size bands does not match the specification.
• The grades converge above 4 in. From 4-1/8 to 7 in, B7 and B7M carry the same 100 ksi tensile and 75 ksi yield minimums. In that range the difference is not strength — it is hardness control, hardness testing and the nut grade.

One chemistry note that shows up on the certificate: A193 specifies composition ranges rather than AISI grades, and for B7M it permits a lower minimum carbon — 0.28% instead of 0.37% — provided the required tensile properties are met in the section sizes involved. That allowance is what lets AISI 4130 be used alongside the usual 4140, 4142 and 4145 chromium-molybdenum steels. B7 and B7M are the same material family, but do not expect a side-by-side certificate comparison to show identical chemistry; the mechanical and hardness requirements are what define the grade.

Hardness: the requirement that defines B7M

The hardness ceiling is what separates these grades in practice.

• B7: 321 HBW or 35 HRC maximum.
• B7M: 235 HBW or 99 HRB maximum.

That B7M ceiling is equivalent to roughly 22 HRC, which is the figure you will see quoted in sour-service specifications, because NACE MR0175 / ISO 15156-2 caps carbon and low-alloy steels used in H2S-containing service at a maximum hardness of 22 HRC. Both descriptions point to the same requirement. Note which form the standard itself uses: A193 expresses the B7M limit as 235 HBW or 99 HRB, and 22 HRC is the converted number.

The reason for a hardness ceiling rather than a strength ceiling is sulfide stress cracking. In wet H2S service, corrosion releases atomic hydrogen that can enter the steel; susceptibility to cracking rises steeply with hardness and strength. A coating does not address it, and neither does a higher strength grade. Softening the material does.

Two practical consequences that are easy to miss:

• 235 HBW is a ceiling, not a target. A193 notes that to meet the tensile requirements, the Brinell hardness of B7M must be over 200 HBW (93 HRB). A lot that has been softened too far fails on strength, so B7M is a controlled hardness window.
• Use the scale the limit is written in. HRC is not a reliable scale at that hardness level, so B7M conformance is checked on the HBW or HRB scale. If you see a B7M hardness limit quoted as 26 HRC or 253 HBW, check it against the standard — the A193 requirement is 235 HBW or 99 HRB maximum.

100% hardness testing, and what it changes in your paperwork

For B7, hardness is verified on a lot or sample basis. For B7M, every individual bolt or stud in the lot is hardness tested.

The logic is straightforward. A hardness ceiling is a per-piece property, and a test on a sample can pass a lot that still contains pieces above the ceiling — and those pieces are exactly the ones that matter in sour service. Because the requirement applies to every piece, it also changes what a buyer should ask for:

• The mill certificate should report hardness results, not only tensile results. A B7M certificate that shows chemistry and tensile data with no hardness record does not demonstrate the requirement that makes the grade B7M.
• The inspection and test plan should state 100% hardness testing explicitly, so the requirement is not left to interpretation at the works.
• Where the project calls for a NACE MR0175 / ISO 15156 compliance statement, it belongs on the certificate for the actual lot supplied.
• B7 and B7M should not be co-mingled in one box or one lot identification. They look the same, and only the marking and the hardness records separate them.

Heat treatment and the 1150 °F rule for B7M

Both grades are quenched and tempered, but the specification sets different minimum tempering temperatures.

• B7: 1100 °F (593 °C) minimum.
• B7M: 1150 °F (620 °C) minimum.

The higher minimum for B7M is one of the levers that brings the hardness down to the 235 HBW ceiling.

There is a second requirement attached to B7M that B7 does not carry. Where the final tempering is carried out at the 1150 °F minimum, that final tempering must follow all machining and forming operations, including thread rolling and cutting. Surface preparation for hardness testing, non-destructive evaluation or ultrasonic bolt tensioning may still be done afterwards.

The reason is cold work. Thread rolling displaces metal under high pressure and leaves a locally harder layer in the thread roots. If that forming happens after the final temper, the roots can sit above the hardness ceiling even when the core of the fastener reads well below it. Thread roots are also a stress concentration, and that is where environmental cracking initiates. This is why the sequence, not just the temperature, is part of the requirement — and why a heat-treatment record that shows the tempering step at the end of the routing is worth checking on a sour-service order.

Nut matching: 2H for B7, 2HM for B7M

A193 covers the bolts, studs and threaded rod. The nuts come from a separate specification, ASTM A194/A194M, and the pairing follows the same logic as the grades themselves.

Grade 2HM is held to the same 22 HRC sour-service hardness level as the B7M stud. A Grade 2H nut is permitted to a higher hardness, and in a sour-service joint the nut sits in the same environment as the stud — so a nut allowed to run harder can become the weakest link in the joint. That is why a drawing or bill of materials that specifies B7M studs with 2H nuts should be queried rather than supplied.

There is a second effect worth checking. Grade 2HM carries a lower proof load stress than Grade 2H — typically 150 ksi against 175 ksi for heavy hex nuts in the common size range. Moving a joint from B7 with 2H nuts to B7M with 2HM nuts changes both the bolt strength and the nut rating, so it is a design change rather than a material substitution.

Hardened washers are not covered by A193 or A194, so the washer grade is a separate selection from the bolt grade — ASTM F436 or F844 hardened washers are one example.

Where each grade is used

Grade B7M is specified where the service is sour, meaning wet H2S is present, or where the project invokes NACE MR0175 / ISO 15156 or an equivalent sour-service bolting specification. Typical settings include upstream oil and gas equipment such as wellheads and flowlines, sour gas gathering and processing, and refinery or petrochemical units handling sour feed.

Two limits are worth stating plainly. B7M is not a corrosion-resistant alloy: its lower hardness addresses cracking risk in wet H2S service, and it offers nothing extra against general corrosion, so it is not a substitute for stainless or nickel-alloy bolting where the environment demands corrosion resistance. And B7M is not a metric grade, whatever dimensions it is ordered in.

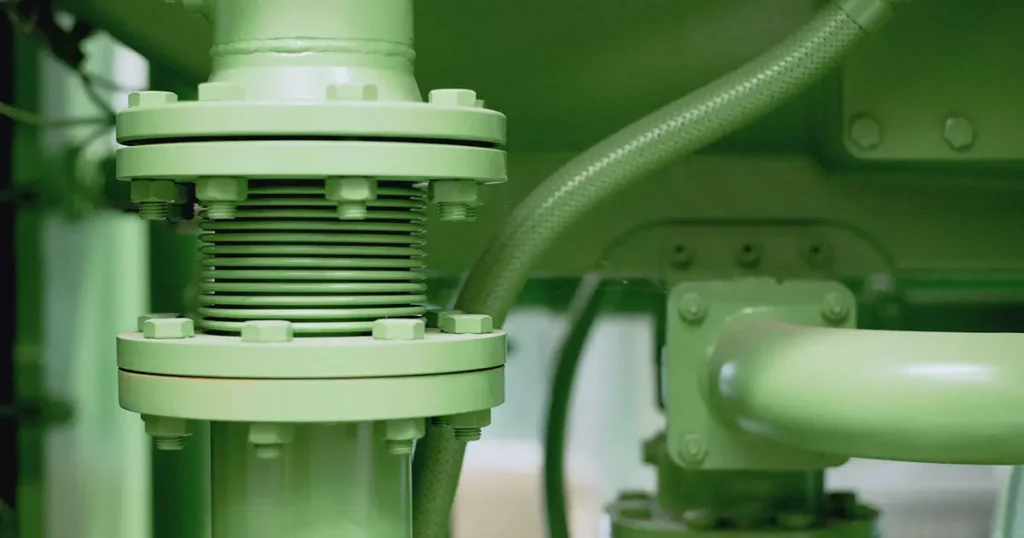

Grade B7 is used for high-temperature and high-pressure bolting where the service is not sour — refinery and petrochemical piping flanges, valves, heat exchangers, pressure vessels and general industrial equipment.

On temperature: A193 is the high-temperature and high-pressure specification, and it does not itself state a maximum service temperature for either grade. The applicable design code, such as ASME BPVC Section II Part D or ASME B31.3, supplies the allowable stresses and any limits. Because B7M has a lower specified minimum yield than B7, its allowable stresses are lower, and that is a design input rather than a purchasing detail.

Low-temperature service is a separate specification again. ASTM A320/A320M covers alloy-steel and stainless steel bolting for low-temperature service, and the same naming logic appears there: Grade L7 parallels B7, and Grade L7M is its lower-hardness counterpart. A320 grades also carry impact-testing requirements that A193 does not. If the design temperature is low, the choice is between A320 grades, not between B7 and B7M.

Can B7 replace B7M?

B7 in place of B7M: no, not without written approval from whoever owns the design. The higher permitted hardness of B7 is precisely what B7M exists to avoid, and a stronger fastener is not automatically a safer one in a sour-service joint.

B7M in place of B7: also not automatic. In sizes up to 2-1/2 in, B7 is specified at 125 ksi minimum tensile against 100 ksi for B7M, and the joint may have been designed on that strength. It would also be paired with a lower-rated nut.

The substitution question comes up most often in the largest sizes, because from 4-1/8 to 7 in the two grades carry identical strength minimums. They are still not interchangeable. B7M in that size range is defined by its 235 HBW ceiling, by 100% hardness testing and by the 2HM nut — requirements that B7 does not meet.

The practical rule: decide from the service. If the line is sour or the project invokes NACE MR0175 / ISO 15156, the bolting has to be B7M with 2HM nuts, with the hardness records to prove it. If the service is not sour, B7 with 2H nuts is the appropriate A193 pairing for high-temperature and high-pressure bolting, and it brings the higher strength with it.

Buying and receiving B7 or B7M

What to put on the purchase order

• The full grade designation. Write “ASTM A193 Grade B7M”, not “B7, sour service”. The two grades are different line items, and a supplier cannot infer the correct one.
• Size and thread form. State inch (UNC or 8UN) or metric, with the length and thread length. Metric dimensions do not change the grade: metric bolting can be Grade B7 or Grade B7M. Stud and threaded-rod dimensions follow their own dimensional standards, such as ASME B18.31.2 continuous thread studs.
• Nut grade. A194 Grade 2H for B7, A194 Grade 2HM for B7M, with the nut specification and dimensions stated separately.
• Hardness requirement and testing. For B7M, state the 235 HBW / 99 HRB maximum and the 100% hardness testing requirement, and ask for the hardness results to be reported for the lot supplied.
• Documentation. A mill test certificate (MTC) with heat traceability, chemistry, mechanical properties, heat-treatment records including the tempering step, and hardness results. For sour service, add the NACE MR0175 / ISO 15156 compliance statement and any third-party inspection the project requires.
• Marking. Confirm that the grade symbol and the manufacturer’s identification are applied, and confirm how the marking is applied at small diameters, where it may sit on the packaging rather than on the part.
• Coating. If the fasteners are coated, agree the coating standard with the project: coatings affect friction and torque targets as well as appearance, and they do not replace the material requirements.
• Segregation. Ask for B7 and B7M to be packed and identified separately, so that a mixed delivery cannot reach the joint.

Checks at goods-in

1. Marking. A193 requires the grade symbol and the manufacturer’s identification. Confirm the part or the packaging reads B7 or B7M, whichever was ordered.
2. Hardness. Because B7M is defined by its hardness, a piece reading above 235 HBW does not conform to B7M, whatever the paperwork says. Use the HBW or HRB scale.
3. Hardness records. For B7M, read the per-piece hardness results rather than a statement that testing was performed.
4. Nut grade. A B7M order should arrive with 2HM nuts. Grade 2H nuts in the same box are a mismatch, not a convenience.

Conclusion

B7 and B7M are both chromium-molybdenum, quenched and tempered A193 bolting grades, and they are not versions of each other. B7M is not metric B7; metric B7 is Grade B7 ordered in metric dimensions.

The real differences are in the requirements. B7M is capped at 235 HBW (99 HRB) instead of 321 HBW (35 HRC), carries a 100 ksi minimum tensile instead of up to 125 ksi, is hardness tested piece by piece instead of by lot, is tempered at a higher minimum temperature with the final temper at the end of the routing, and pairs with A194 Grade 2HM nuts instead of 2H. Those requirements exist for one purpose: bolting that will not crack in wet H2S service.

So the selection question is not which grade is better. It is whether the service is sour. If it is, specify B7M with 2HM nuts and hold the supplier to the hardness records. If it is not, B7 with 2H nuts is the pairing the specification expects for A193 high-temperature and high-pressure bolting.
